Hot Spring®
PRISM™ | Limelight® | $$$$ | 7 Seats
PRISM™ | Limelight® | $$$$ | 7 Seats

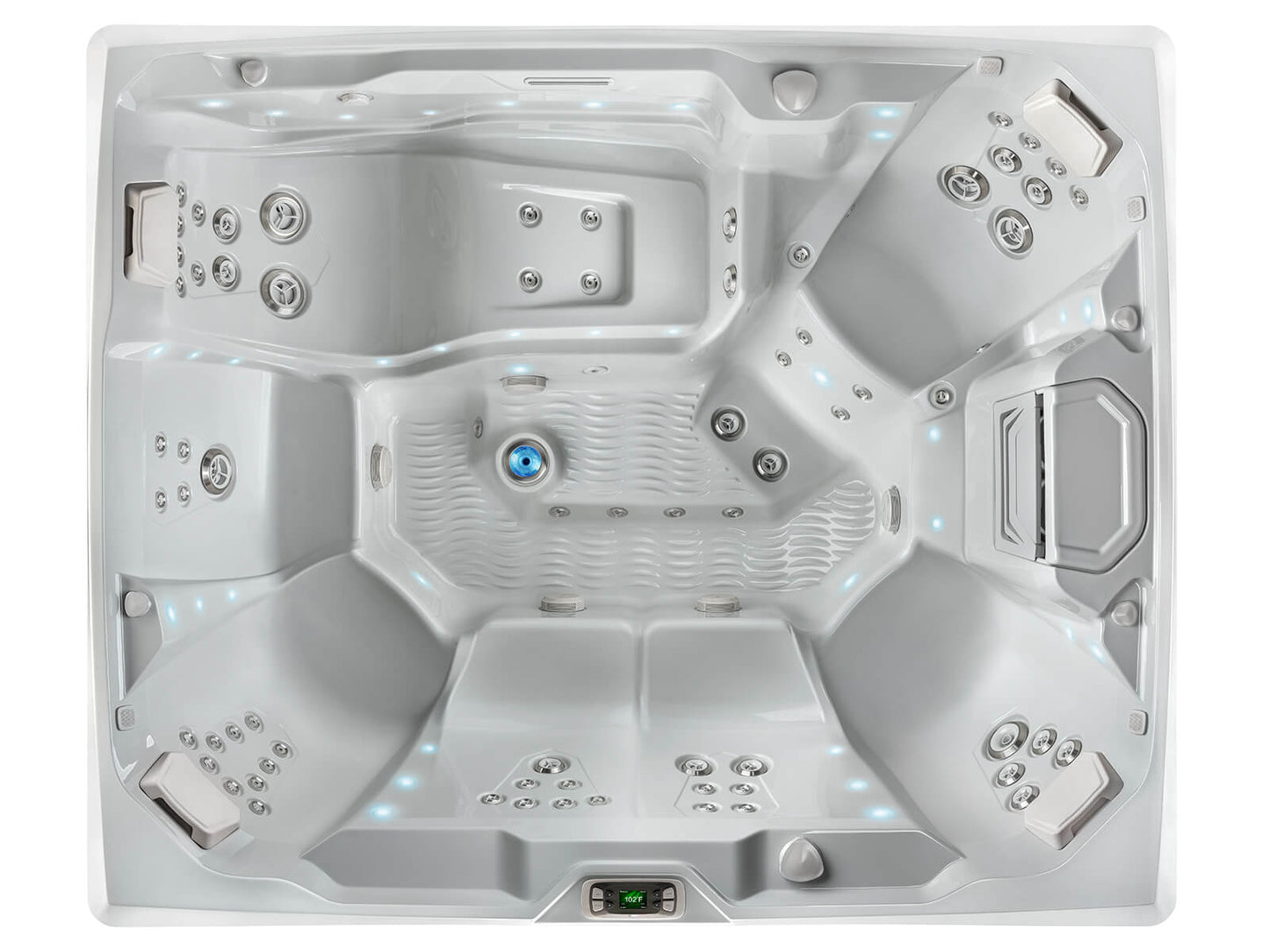

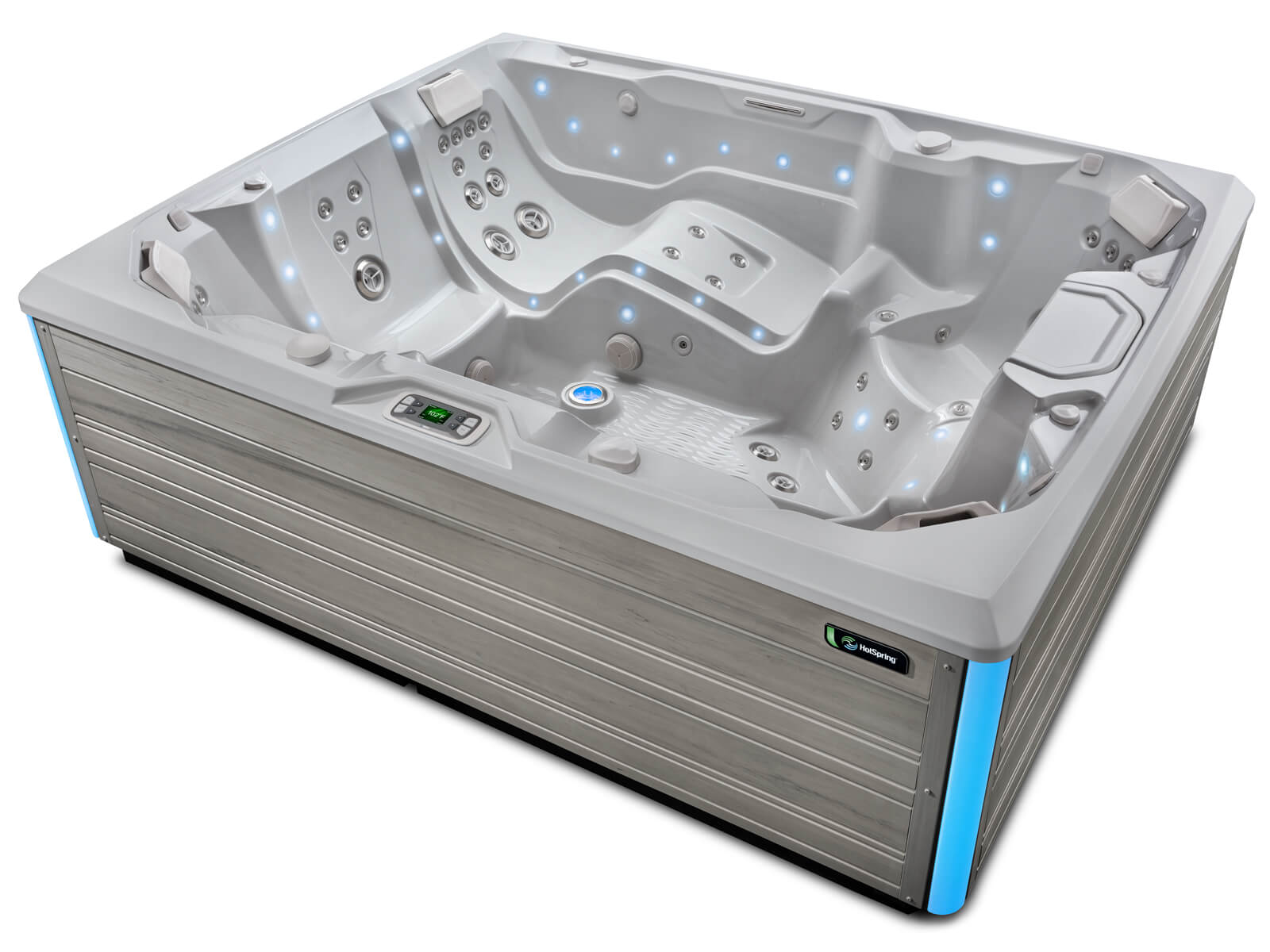

The extra large Prism is a premium seven-seat spa with a relaxing lounge seat and the JetStream® XL jet for an exceptional foot and leg massage.
PEOPLE | 7 |

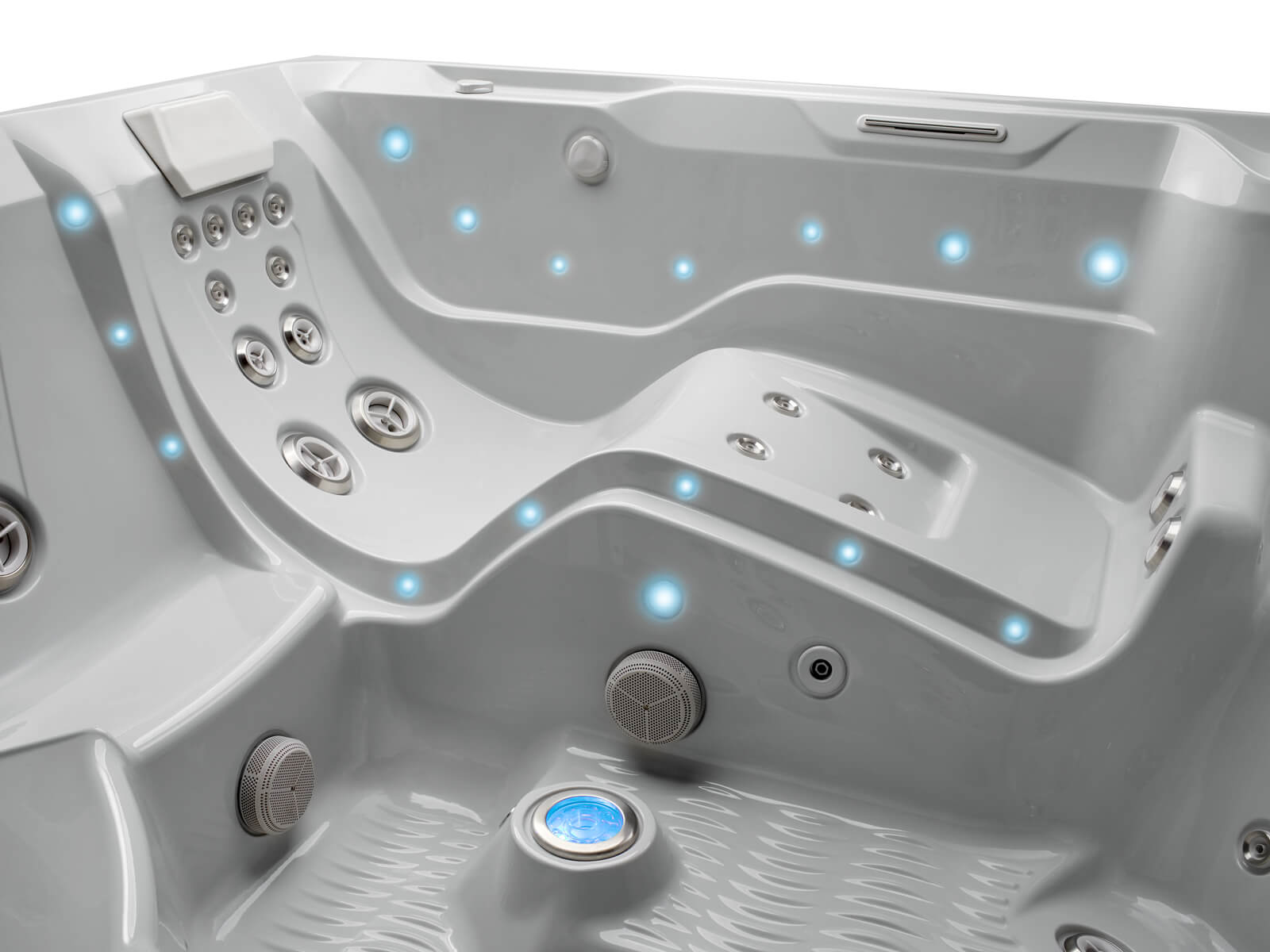

SEATING | Lounge |
VOLTAGE | 230 V |
DIMENSIONS | 9'2" x 7'7" x 38" |
WATER CARE | FreshWater® Salt System Included |
Share









VIEW THIS SPA IN YOUR SPACE
Shop and compare models virtually, in any color combination, and see how they look in your space with the Virtual View™AR app.
KEY SPECS

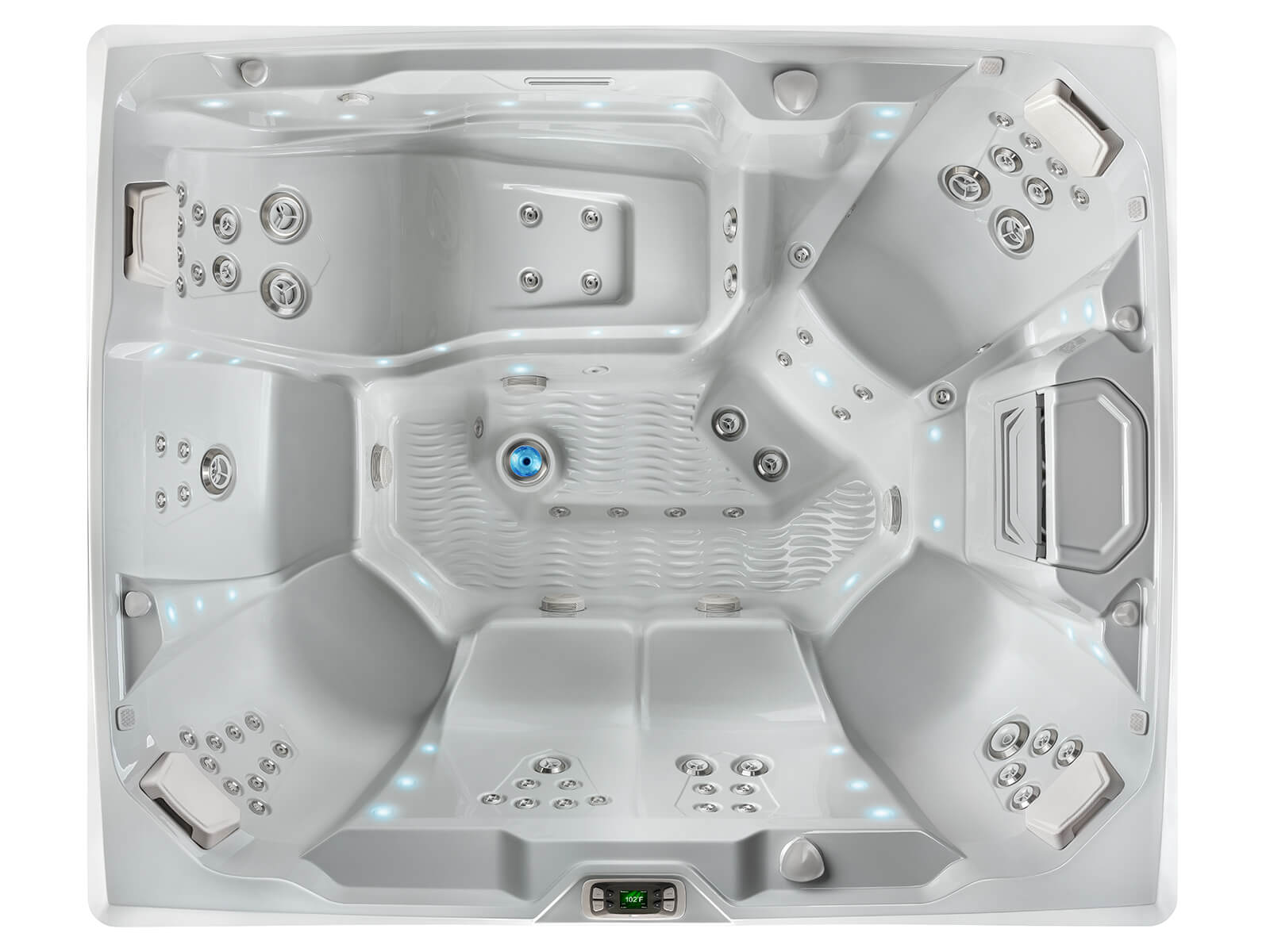

TOTAL SEATS
7 Seats (1 Lounge Included)
DIMENSIONS
9’2” x 7’7” x 38”
279 cm x 231 cm x 97 cm

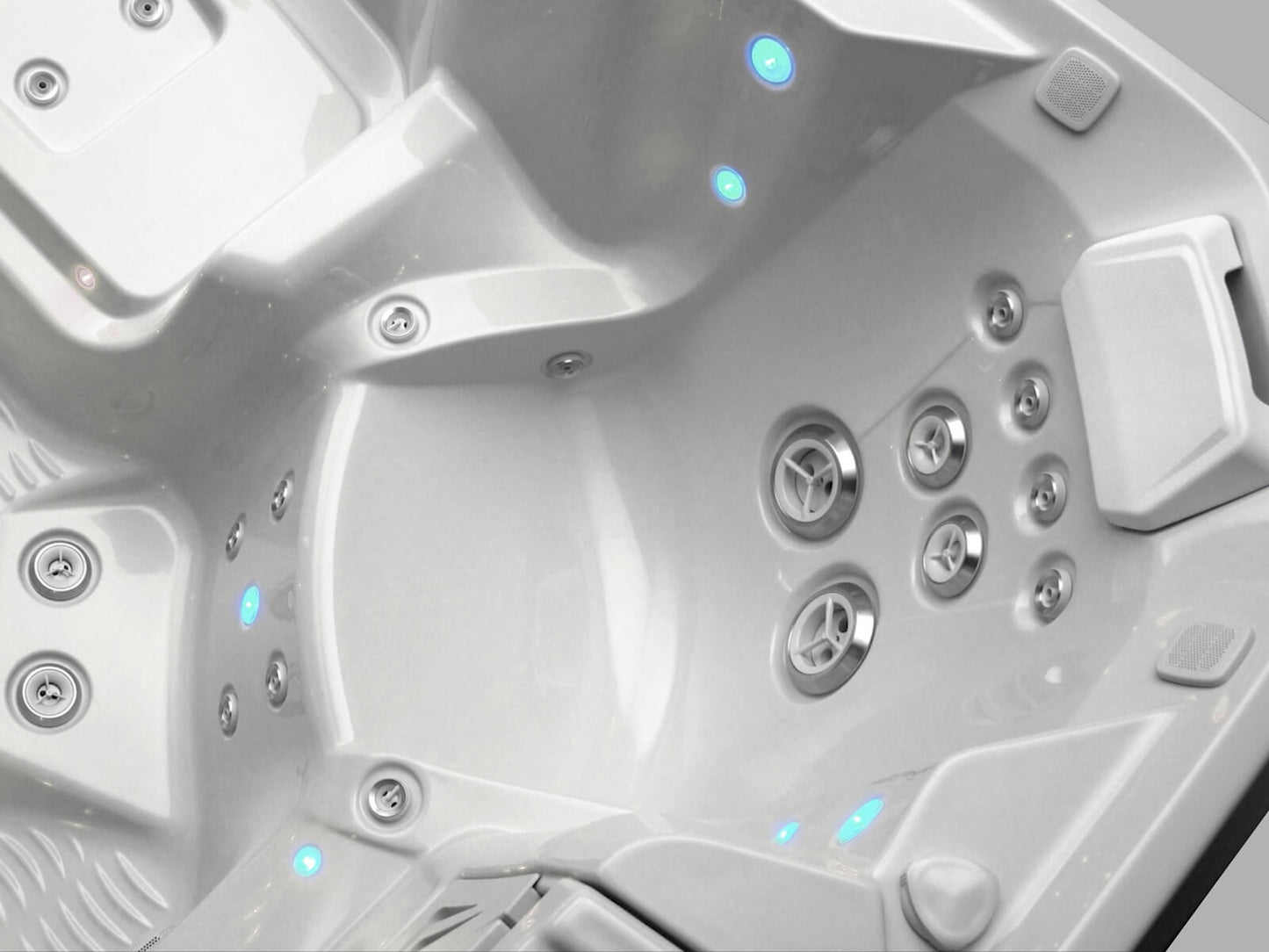

JETS & JET PUMPS
73 Jets
1 - JetStream®XL
1 - XL Dual Rotary
2 - XL Single Rotary
3 - XL Directional
7 - Standard Dual Rotary
4 - Standard Single Rotary
4 - Standard Directional
10 - Rotary Precision®
41 - Directional Precision®
Jet Pump 1
Wavemaster®9200
Two-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 2
Wavemaster®9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
Jet Pump 3
Wavemaster®9000
One-Speed
2.5 HP Continuous Duty
5.2 HP Breakdown Torque
WATER CARE SYSTEM
FreshWater®Salt System Included
SMART MONITORING SYSTEM
FreshWater®IQ System Ready
VOLTAGE
230V
WATER CAPACITY & WEIGHT
Water Capacity: 525 g / 1,990 L
Dry Weight: 1,190 lb. / 540 kg
Filled Weight: 6,795 lb. / 3,085 kg
ADVANCED DESIGNS AND FEATURES. A CUT ABOVE.

THE LEGENDARY HOT SPRING® MASSAGE
Comfortable seats with purposefully arranged jet systems that work together to target specific muscle groups. The result is a distinctive massage for your neck, shoulders, back, wrists, calves, and feet.

EASY WATER CARE
Crystal clear water is essential to a great spa experience. The Limelight Collection® offers exclusive and proprietary technologies like the FreshWater® Salt System and Smart Monitoring IQ. Together they let you know exactly what you need to maintain clear and natural water.

A LEADER IN ENERGY EFFICIENCY
Limelight Collection® spas offer the very best in energy saving designs and are equipped with an Energy Smart® System. A FiberCor® Foam Insulation and a Titanium No Fault® Heater work together to ensure that your spa will be hot when you are ready, all the while keeping energy costs low.

SEE THINGS IN A WHOLE NEW LIGHT
You can count on lasting quality and unparalleled customer care from a global, top-selling brand. From their dramatic shell design, stainless steel jet details and beautiful LED lights, a Limelight® Collection spa will surely turn heads.
ADDITIONAL SPECS
CLEAN WATER FEATURES
Dual Action Filtration System
FreshWater® Salt System Included
FreshWater® Salt Monitoring System Included
SilentFlo 5000® Circulation Pump
Floor Drain
ENERGY EFFICIENCY
FiberCor® High-Density Insulation
Titanium No-Fault®4,000 W / 230 V Heater
Patented Pump Shroud
Custom-Fit Insulated Cover, WeatherPro™4" Tapered Core with Hinge Seal
Polyethelyne Sealed Bottom
Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
INTUITIVE CONTROL
IQ 2020® with Color LCD Touchscreen
230 V / 50 amp, 60 Hz, Includes G.F.C.I. Protected Subpanel
Diagnostic and Ready Hot Spring Logo Light
DESIGN

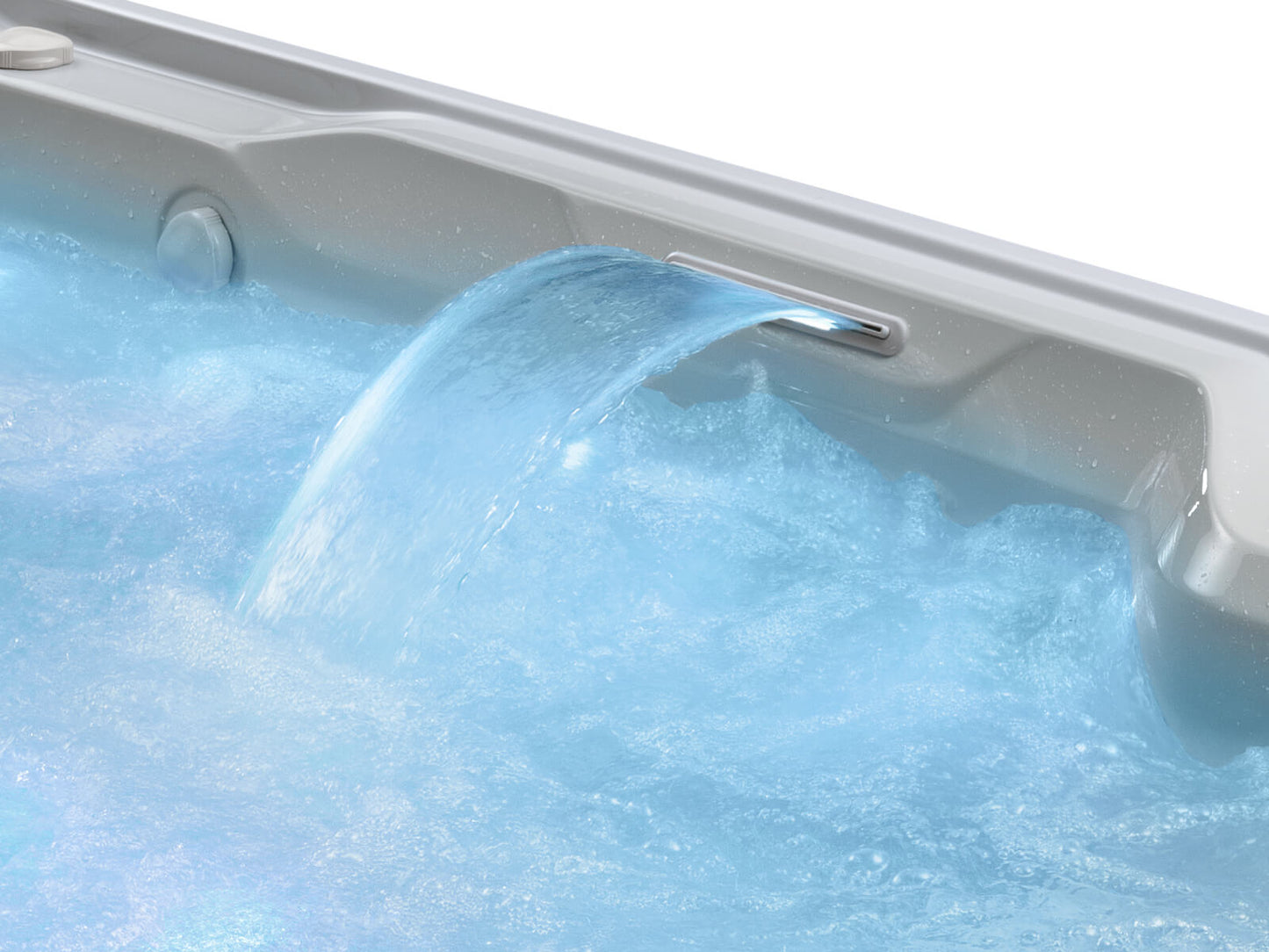

Vidro®Backlit Ribbon Waterfall
Multi-Color LED Points of Light
Multi-Color LED Lighting with Timer
Customizable Outer Cabinet and Shell
Multi-Color LED Lighting with Timer
WARRANTY
No-Leak Shell: 7 Years
Shell Surface: 7 Years
Cabinet: 5 Years
No-Leak Plumbing: 5 Years
No-Fault® Heater: 5 Years
Component Warranty: 5 Years
Interior Light Assembly: 2 Year
